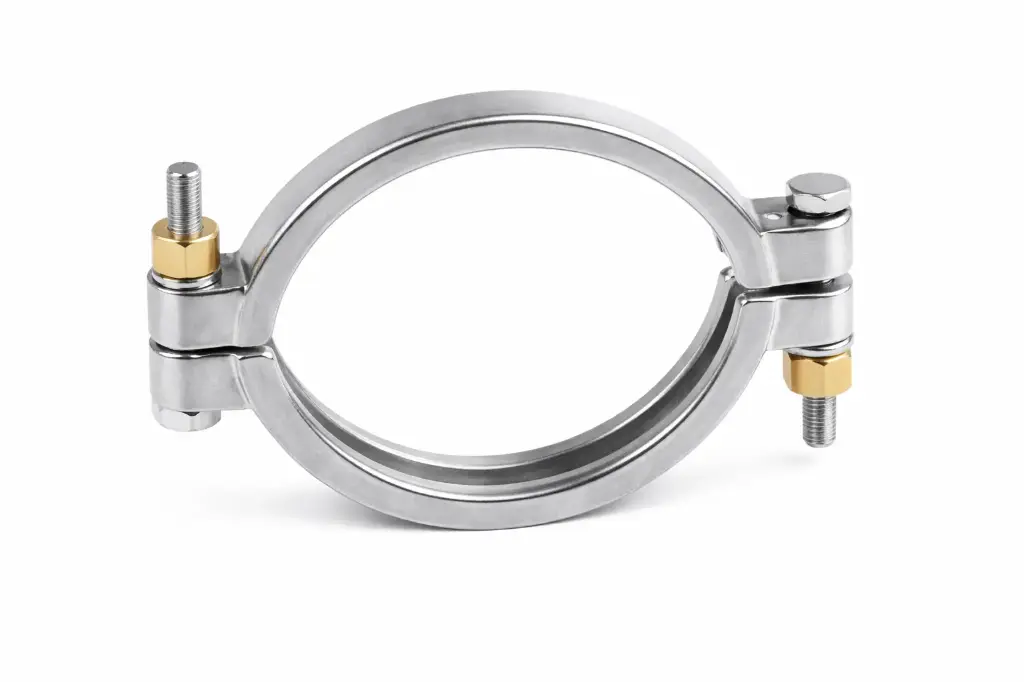

Clamp 217 - type B high pressure
Clamp 217 - type B (high pressure) is a robust sanitary clamp intended for connecting Clamp (Tri-Clamp) connections in applications with higher operating pressure. Thanks to the reinforced construction and solid screw closure, it ensures a safe and stable connection even in demanding operating conditions.
It is suitable for use in brewery, food and beverage technologies, where high mechanical resistance and reliability of the connection are required.
High pressure clamp sleeve type B it is made of high-quality stainless steel and designed for tight clamping of two sanitary flanges (ferrules) by means of a seal. The Type 217 construction provides greater strength than standard single-joint sockets.
The screw closure enables uniform tightening of the joint, resulting in optimal sealing pressure and minimizing the risk of media leakage. The sleeve is especially suitable for applications with higher pressure or where increased security of the connection is required.
Typical uses:
liquid pressure distributions
brewing and food technology
CIP and technological circuits
connection of tanks, pumps and fittings
Typ:
Sanitární svěrná objímka (Clamp / Tri-Clamp)
Provedení:
Typ 217 – typ B (vysokotlaká)
Materiál:
Nerezová ocel AISI 304 / AISI 316 (dle dodávky)
Uzavírání:
Šroubové, zesílené provedení
Použití:
Sanitární potrubní systémy, tlakové aplikace
Kompatibilita:
Standardní Clamp (Tri-Clamp) příruby
Barva:
Stříbrná (nerez)
